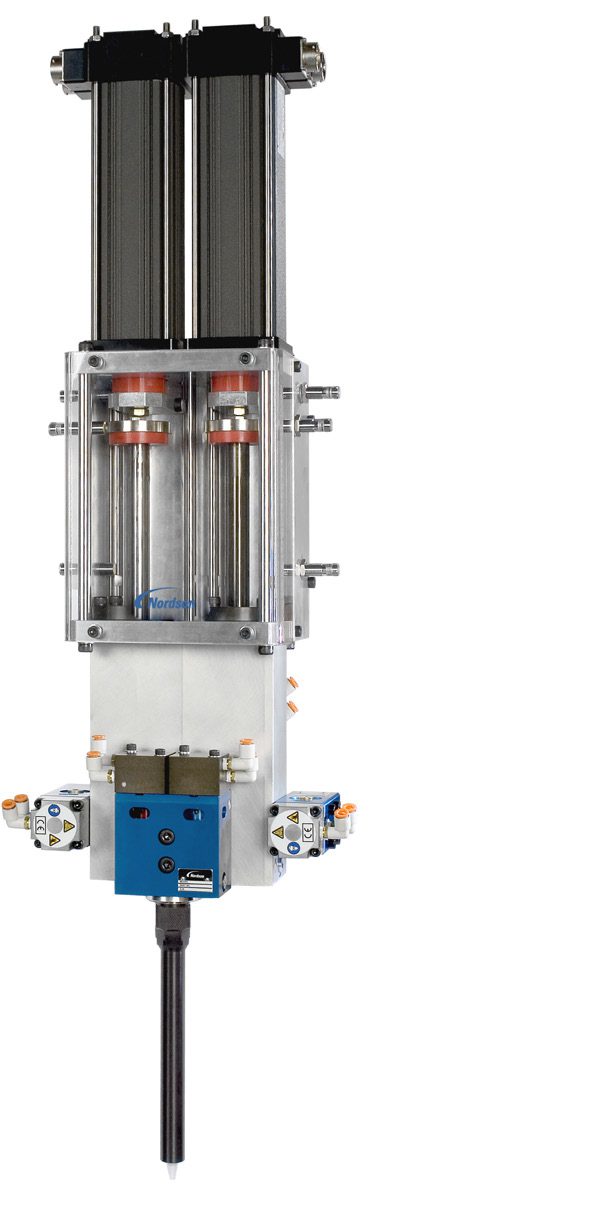

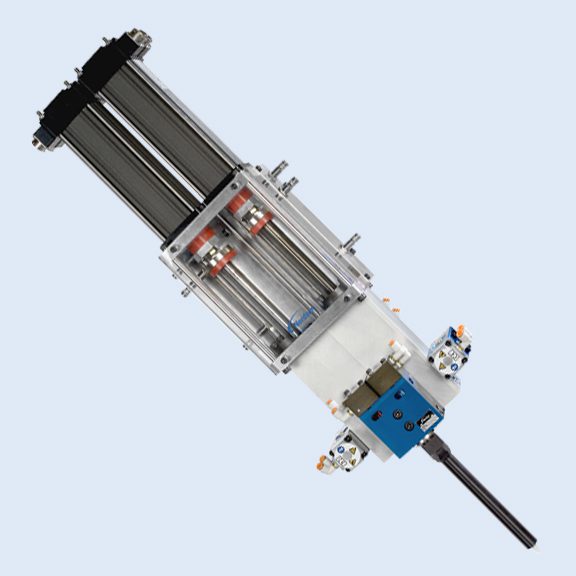

The Nordson Pro-Meter S2K series two-component shot meters are designed for application of two-component materials. When “bead on the part” appearance and consistent command of bead profiles and mix ratio are crucial to product quality and function, Nordson’s Pro-Meter S2K shot meters are the solution.

The Pro-Meter S2K metering system is designed for fast, easy maintenance. It features a high-performance ScoreGuard shaft coating to help withstand the abrasive materials present in today’s demanding production environments. In addition, it incorporates:

• Modular design
• Quick-connect cables
• Quick-change packing cartridges
• On-line routine servicing without removal from
• the production cell
• Reduced maintenance costs

Features and Benefits
• Linear servo actuator and positive displacement meter provide accurate volume and flow rate control, regardless of changing material characteristics or robot speed.
• Flow-through material porting design reduces “packing out” of filled materials within cylinder, helping to reduce nozzle plugging and maintenance.
• Dual independent servo drives provide the system with the flexibility to be set up to dispense at a ratio that meets the material and application requirements.
• Quick-change packing cartridges facilitate easy access for on-line routine servicing and reduced maintenance costs.

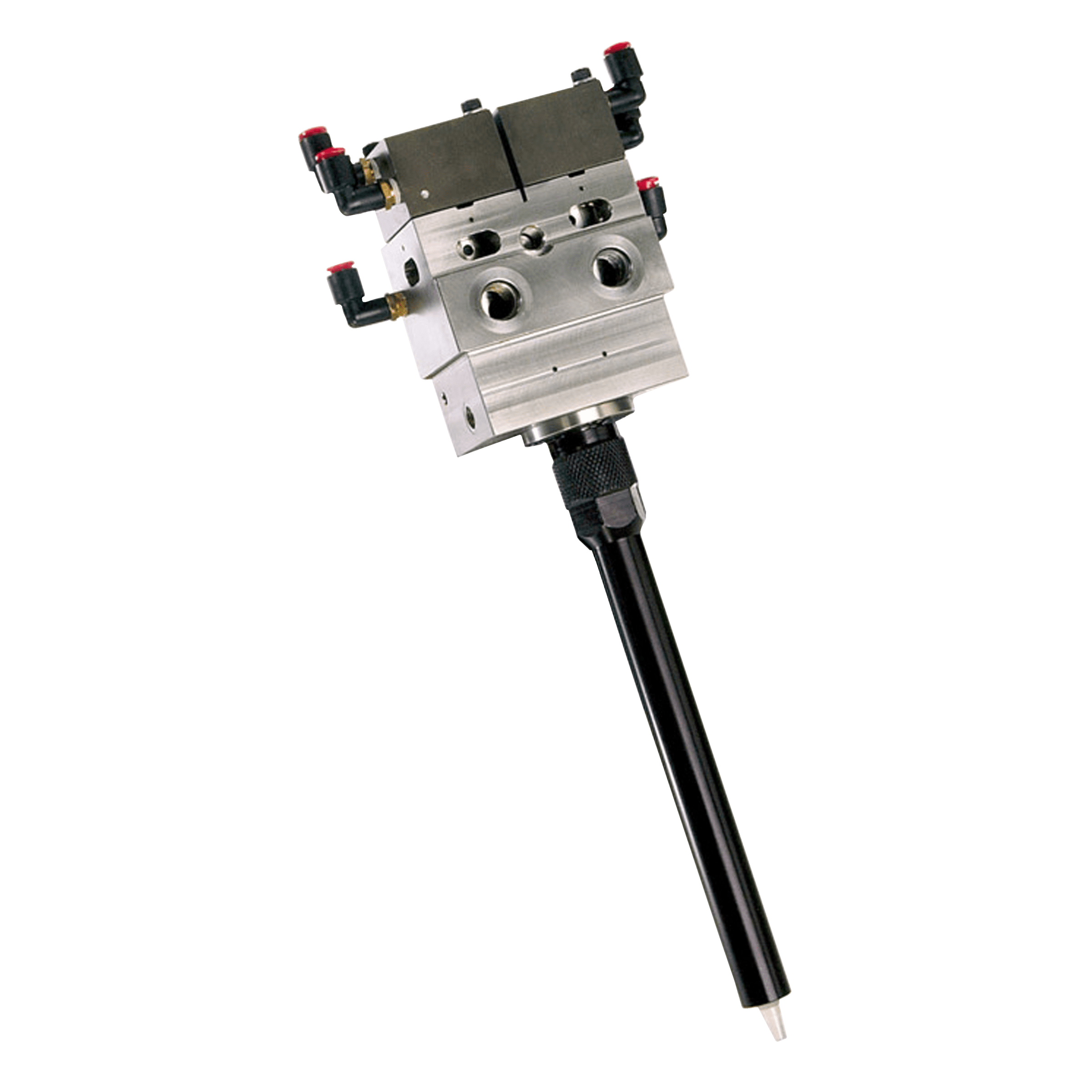

• Auto-Flo valve technology inlet/outlet valves provide accurate deposition and control with sharp material cut-off for maximum performance and cartridge-style maintenance.
• Extrude, stream or swirl capability provides flexibility to meet application requirements.
• Multiple meter sizes available to meet specific application volume and cycle time requirements.
• Optional integrated temperature conditioning – either 120V or 240V electrically heated units or water traced units are available – provides internal control of material temperature to the point of dispense.
• Available ARW seals pass air behind the primary seal to prevent an aerobic material from curing, eliminating premature wear and excessive maintenance.
