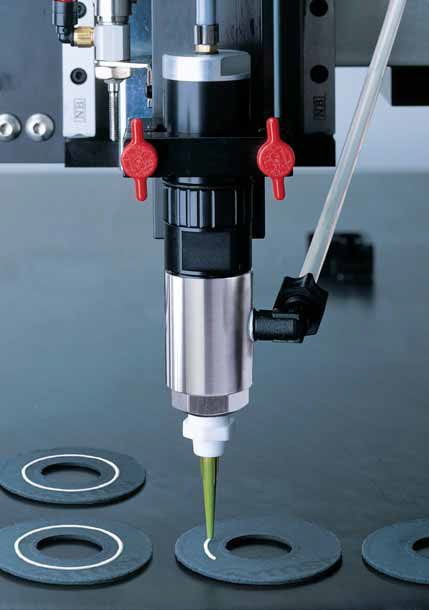

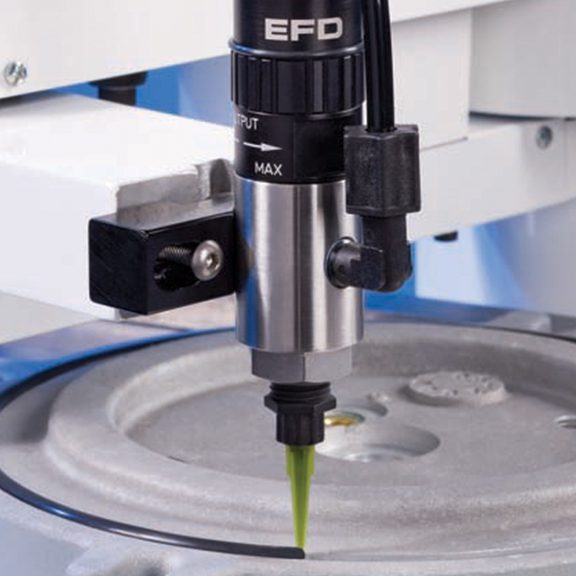

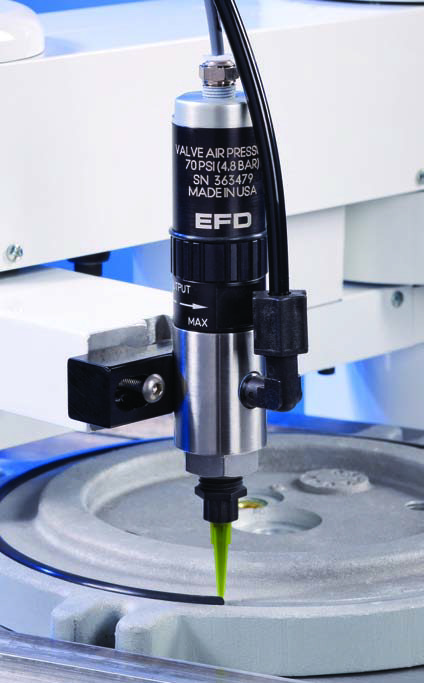

The 725D Series piston valve delivers consistent, precise deposits of viscous fluids. Its unique diaphragm isolates wetted components from the actuator, providing superior wear resistance.

Ideal for use with a variety of medium-to-thick fluids, the 725D pneumatic valve’s rugged construction features an ultra-high molecular weight (UHMW) polyethylene diaphragm that isolates the wetted components from the actuator and provides long wear.

A slight snuff-back at the end of the valve dispensing cycle prevents dripping between shots. All models feature the ability to be mounted in any position.

The 725DA-SS model provides stroke adjustment for both fluid flow and snuff-back control. The 725D-SS model is non-adjustable with fixed stroke travel.

Features
• Positive shutoff
• Excellent chemical resistance
• End-of-cycle snuff-back
• Diaphragm life exceeds 50 million cycles
