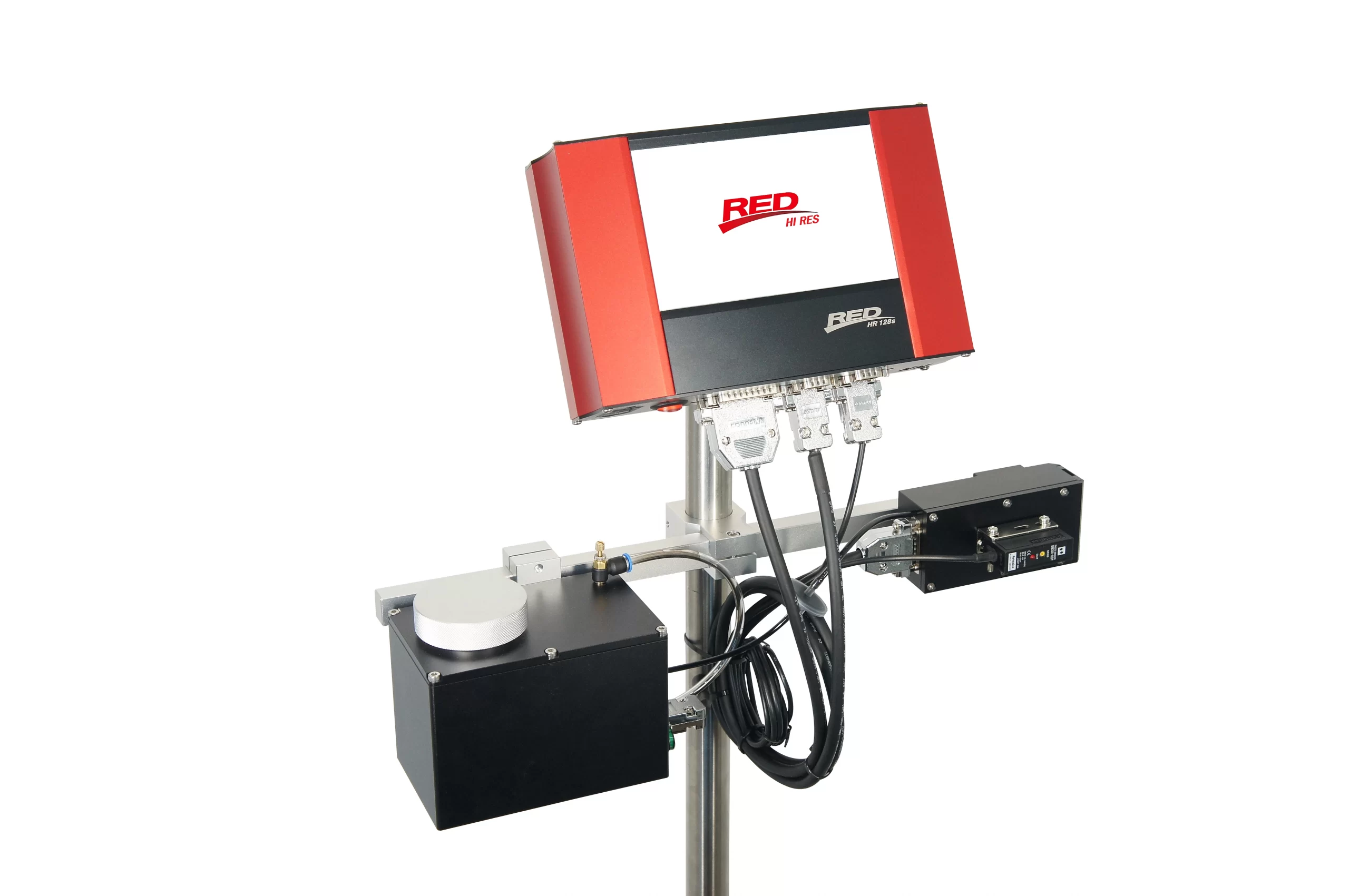

RED HIRES

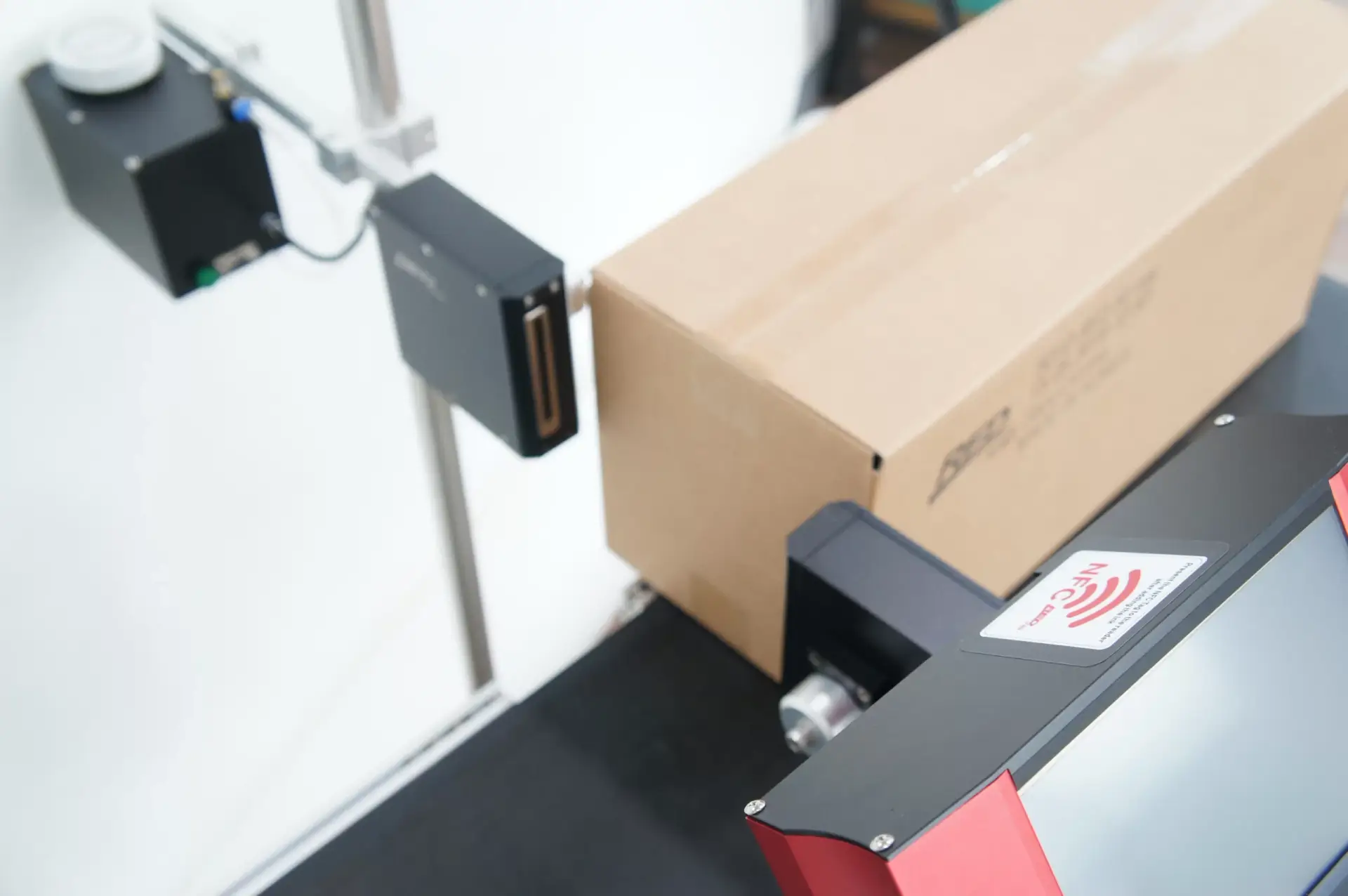

RED HIRES SAMPLE APPLICATION

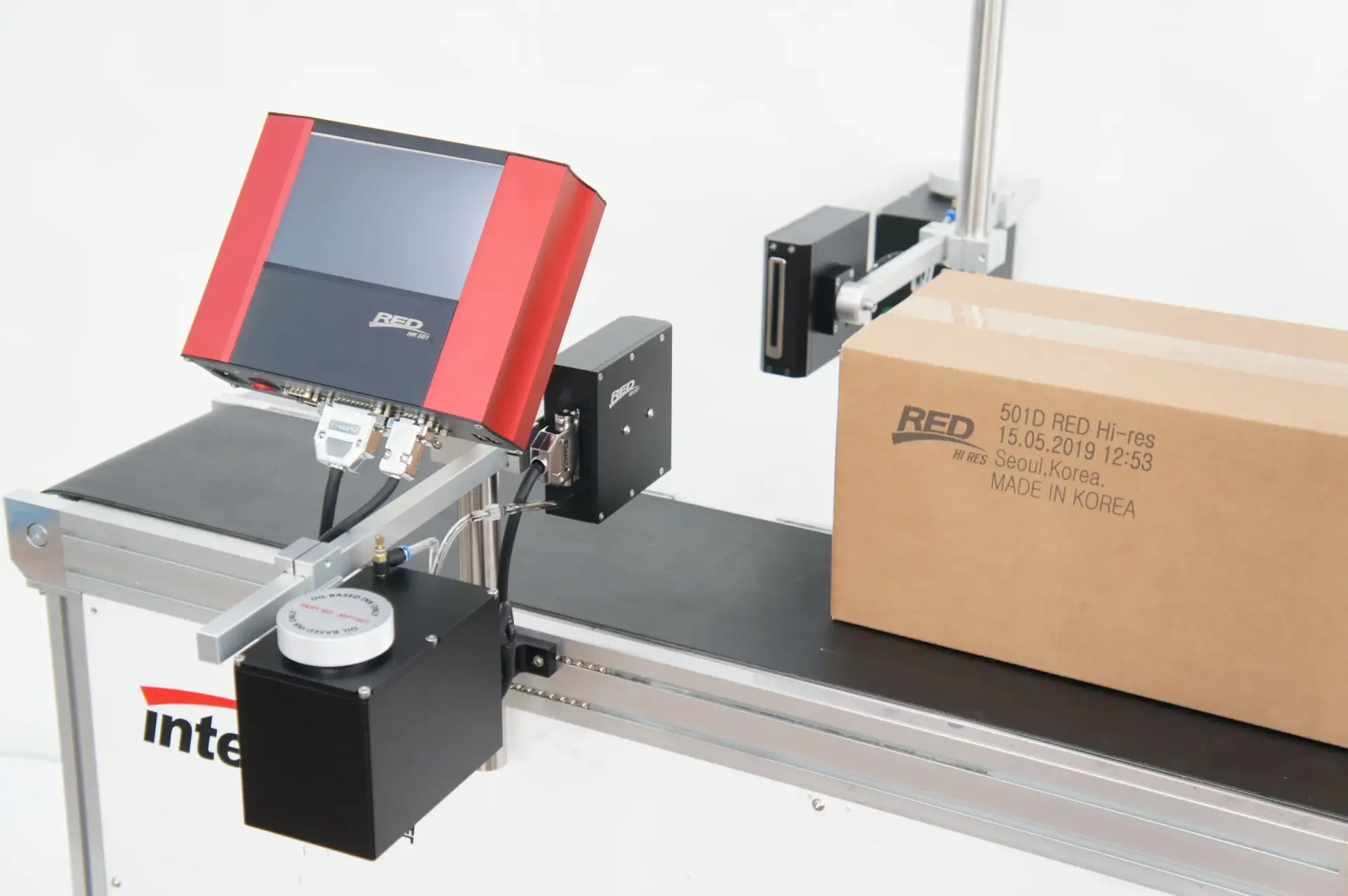

RED HIRES SAMPLE APPLICATION
RED HIRES SAMPLE APPLICATION

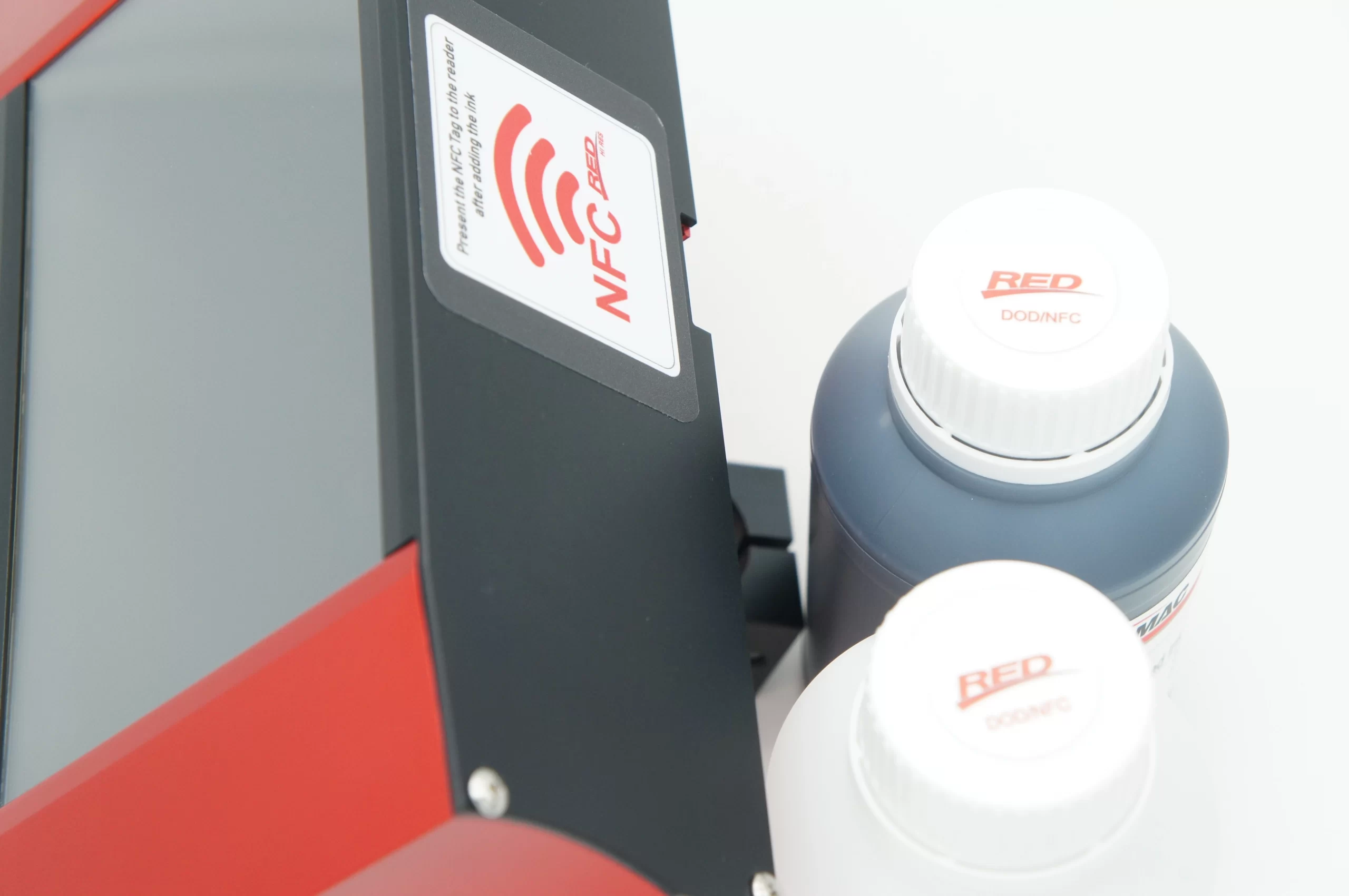

RED HIRES WITH INK

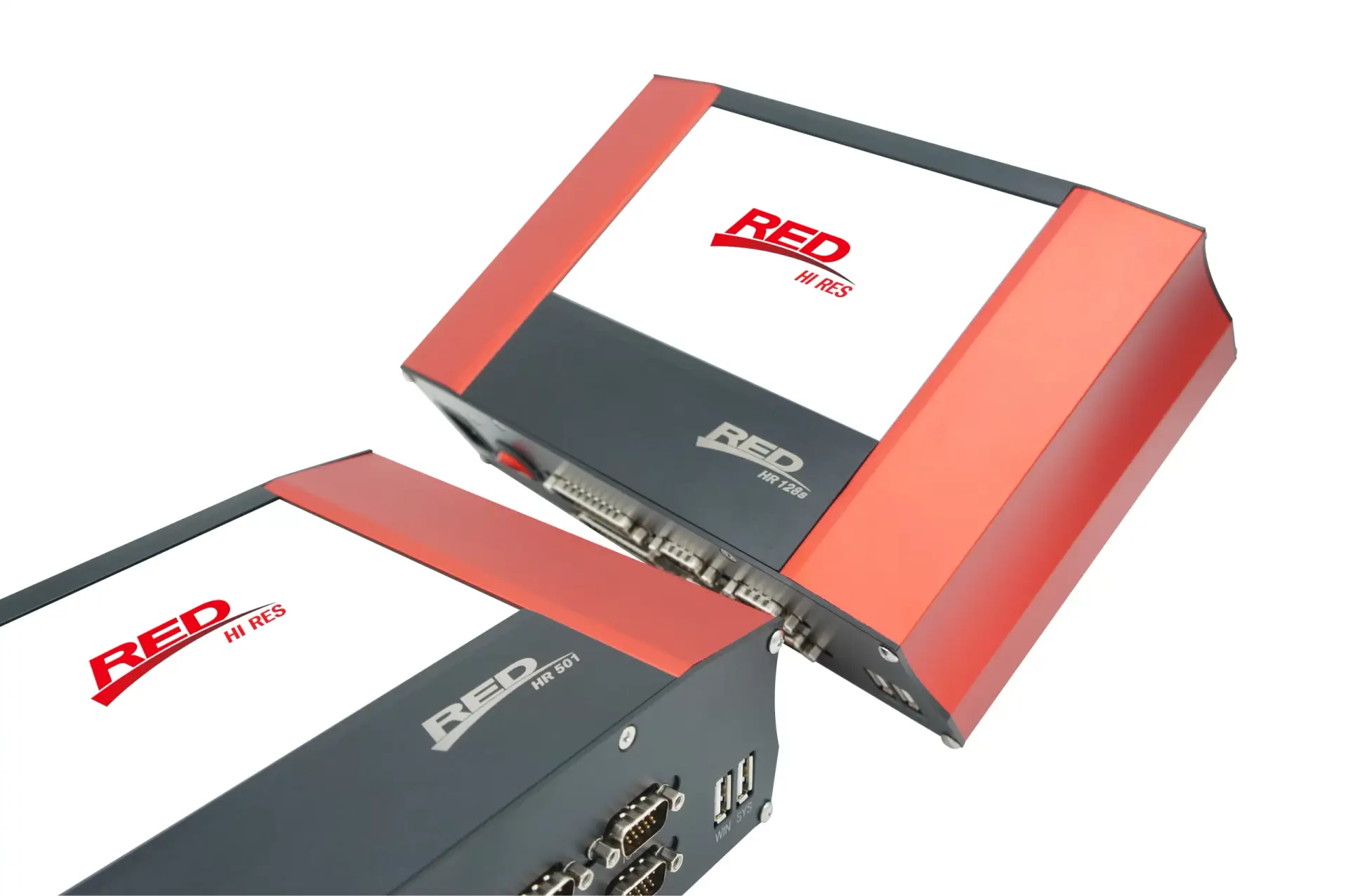

RED HIRES

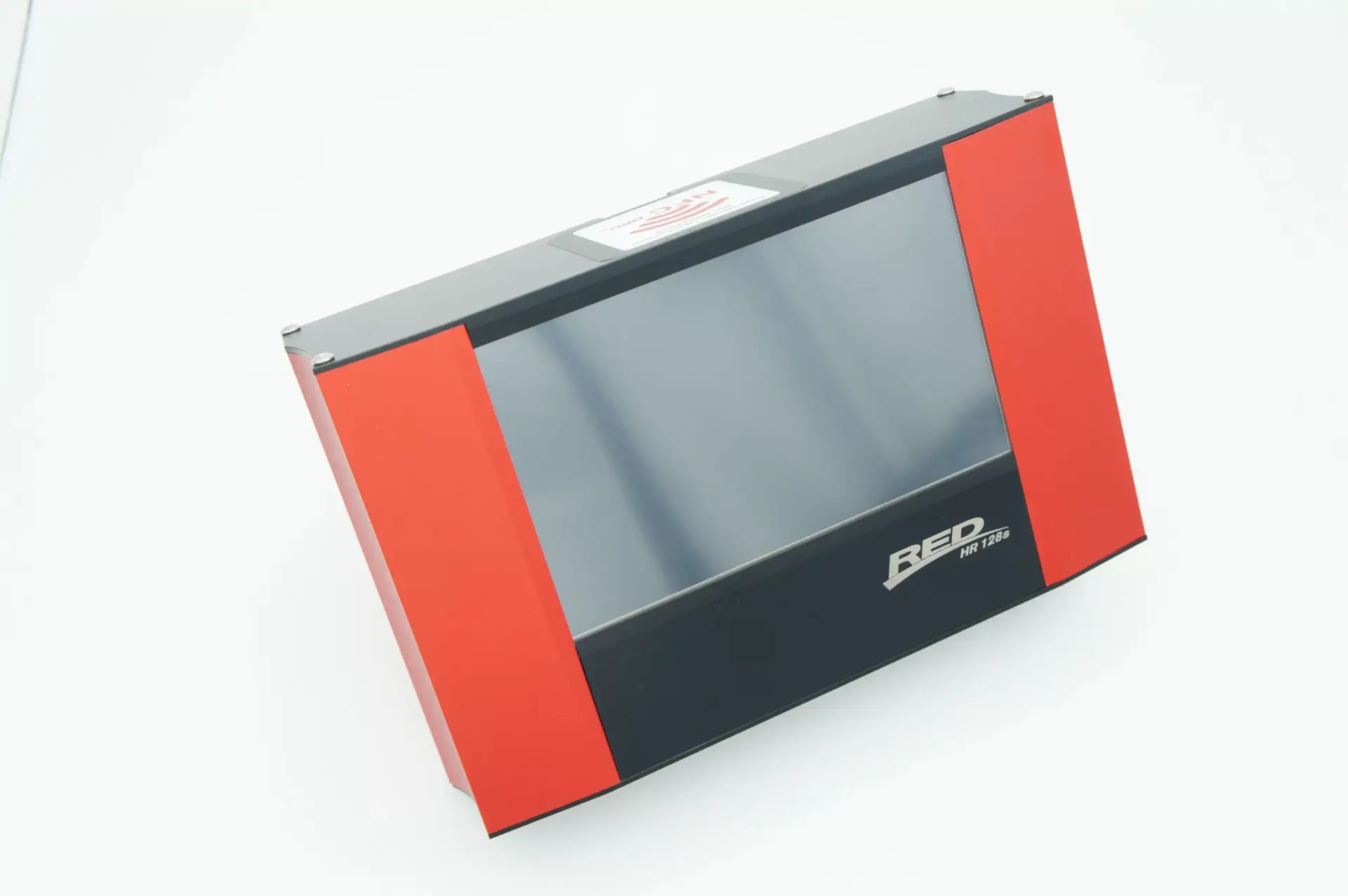

RED HIRES

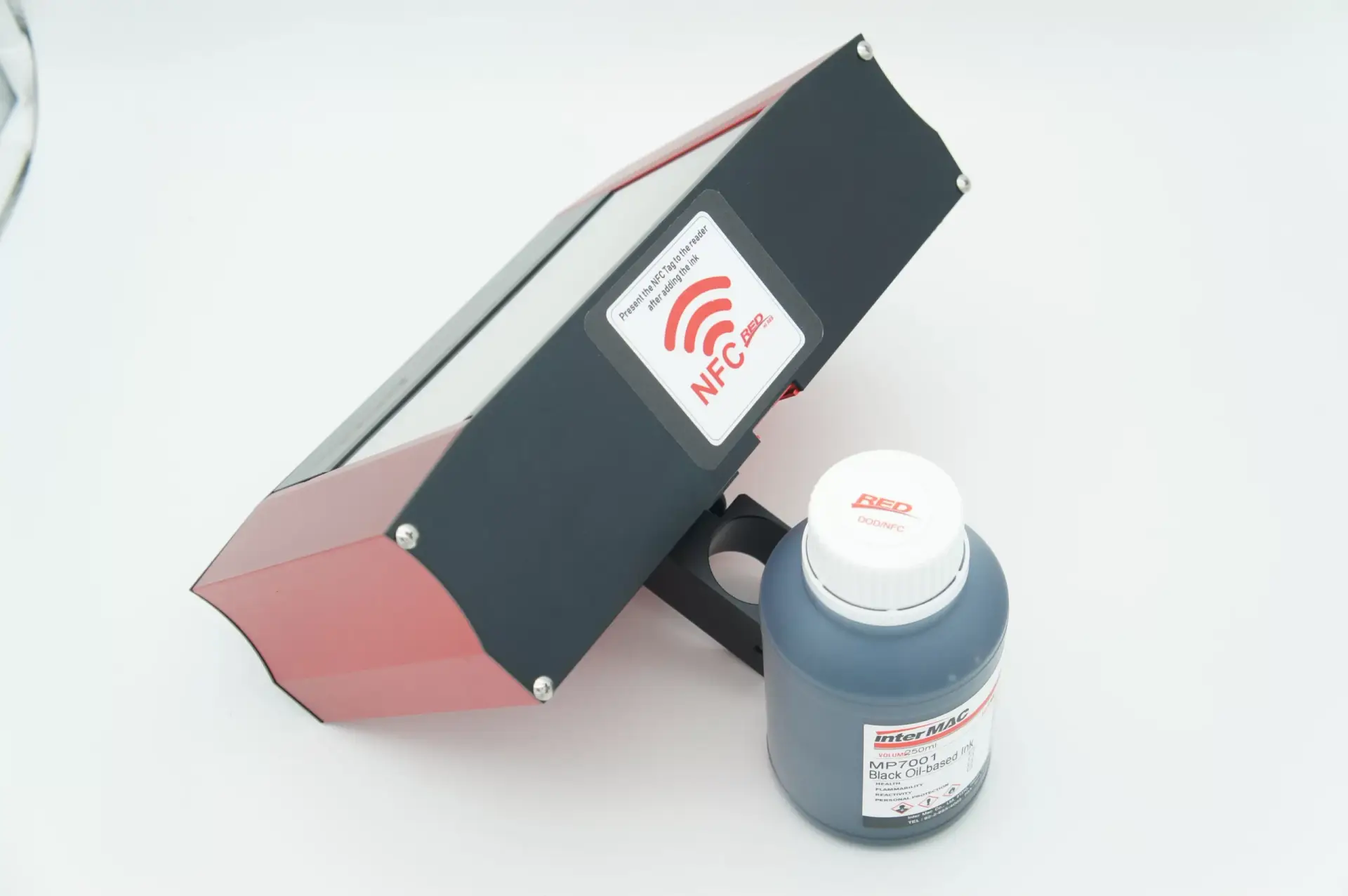

RED HIRES WITH INK
RED HIRES SAMPLE APPLICATION
RED HIRES

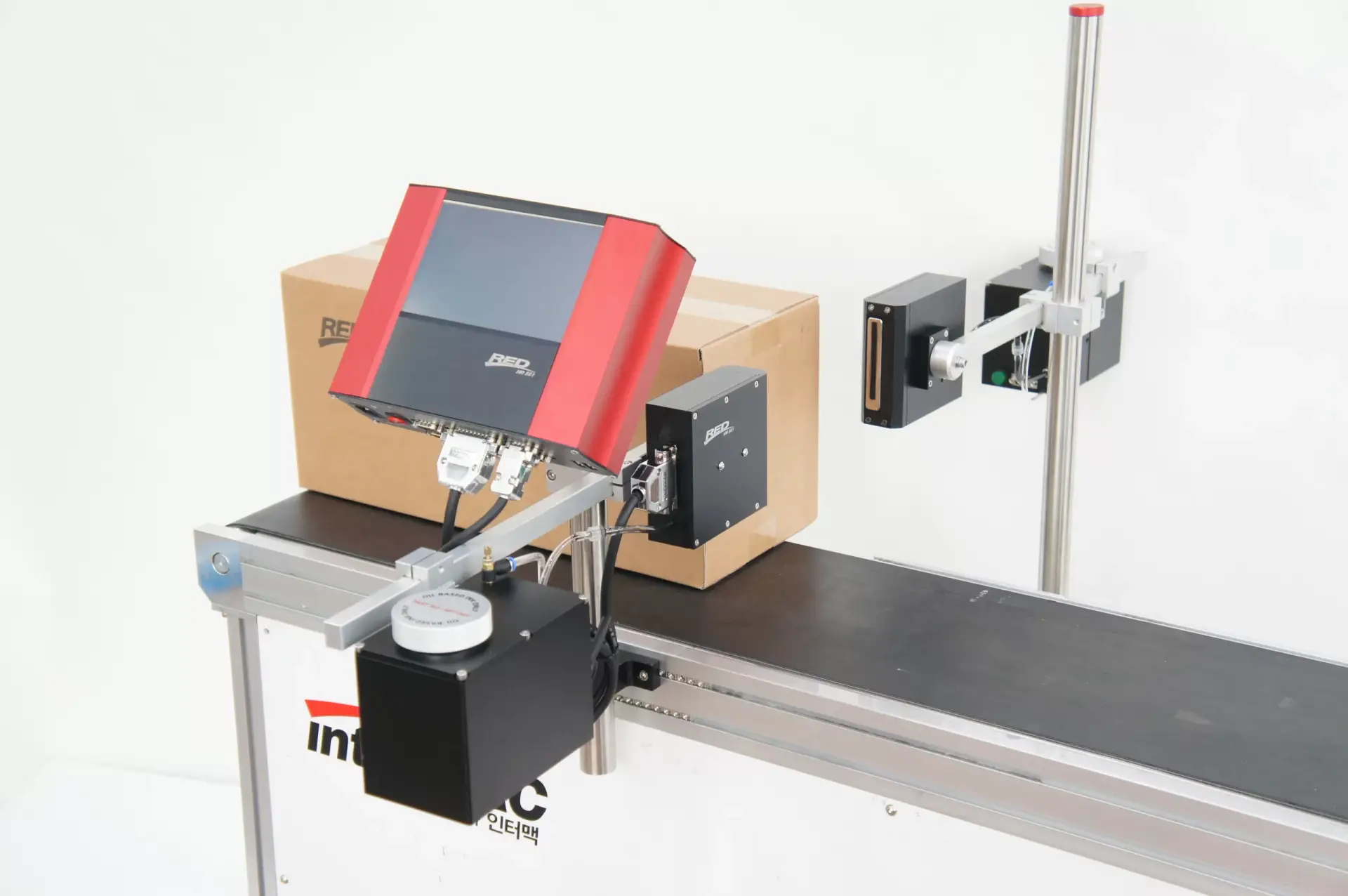

RED High Resolution Bulk Inkjet Marking (HR501)

Introducing the new Inter Mac’s High resolution Inkjet Marking System, RED HIRES. This model is designed with XaarTM Printhead that can print 200DPI. The printhead has either 128 or 500 nozzles, and it can print lot number or barcode in fast speed. For continuous operating with minimum interruption, RED HIRES is built with a 500ml large ink reservoir so it can be run without temporary stop and changing cartridge for a long time. It also has a printhead purge button for convenient system maintenance.

New NFC function allows users to refill the correct ink in order to maximize product performance and uptime extend product life by ensuring compatibility between product and ink. RED HIRES provides a window based graphic user interface to help users operate the system without trouble. Software menu is available in a variety of languages with 7” color touch screen.

Request Quote

RED High Resolution Bulk Inkjet Marking (HR501)

Category Tag

200DPI High resolution Text, Image, Barcode marking500ml Large Ink Reservoir
Safety Ink Refill with NFC Tag
7” Color Touch Screen
Simple and Easy Window based User Interface

Print Specs
• Resolution: 200DPI
• Print Speed: Max. 60m/min
• Print Height: 1-70mm
• Storage Capacity: 1,000 messages
• Message: Text, Barcode, Image, Auto Date/Time, Counter, Shift Code
• Barcode: QR Code, DataMatrix, CODE128, CODE39, CODE93, CODE20F5, EAN13, UPCA, UPCE
• Language: English, Chinese, Korean, Japanese, Vietnamese, Italian, Turkish, Spanish, Arabic, Persian, Portuguese, Lithuanian, German, French, Russian, Dutch, Indonesian, Hindi, Malaysia, Bangla, Thai, Rumanian
• Font Type: Gulim, Arial/Importing an external font
• Date Type: Production Date, Expiration Date, Julian Date

Ink Specs
• Ink Supply: 500ml Aluminum Ink Supply Container
• Ink Type: Oil-based Black Ink
• NFC Tag: NFC Tag Ink Refill with Floating Level Sensor
• Ink Reservoir Volume: 500ml
• Marking Surface: Porous Surface such as carton box and paper

Product Specs
• Power: AC90V-230V/50-60Hz
• Display: 7” (800x480mm) Color LCD Touch Screen
• Connection Port: Photo Sensor, Warning Light, BCD, RS232, Encoder, USB
• Backup/Recovery: USB
• Ink Refill: Safety Ink Refill with NFC Tag
• Operating Temperature: 5-45oC
• Operating Humidity: 10-85%RH
• Certificate: CE, FCC
