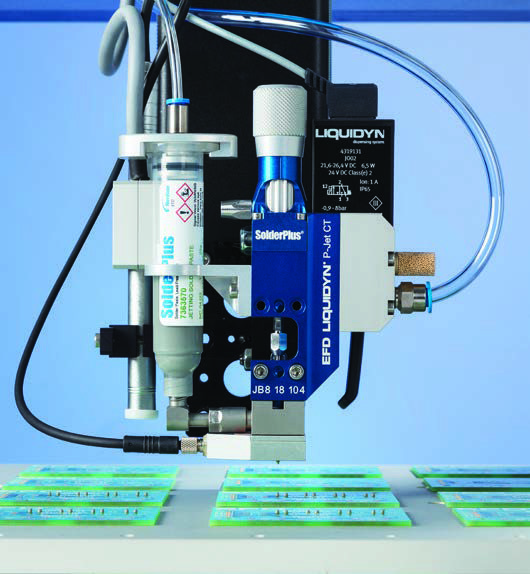

This complete solder paste jetting system is designed specifically to jet Nordson EFD SolderPlus dispensing paste with high accuracy and repeatability at faster speeds for increased productivity.

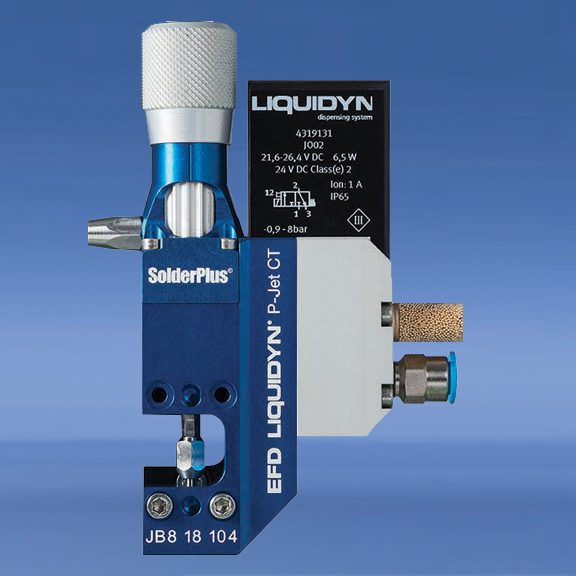

The pneumatically actuated Liquidyn P-Jet SolderPlus jet valve features a modular design, which simplifies maintenance and reduces service time. Pre-qualified SolderPlus solder paste from Nordson EFD streamlines implementation of the system by delivering a complete, qualified solution.

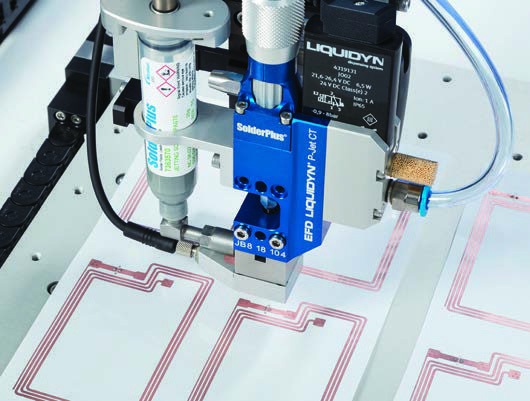

The non-contact dispensing system eliminates the need for Z-axis movement, allowing for faster production speeds. The system also makes it easy to dispense solder paste consistently onto uneven surfaces. It protects fragile substrates from damage since there is no contact.

Features
• Suitable for use with a wide variety of EFD SolderPlus solder pastes
• Volumes starting at 3 nL with deposits as small as 750 μm in diameter
• Dispensing frequencies as high as 100Hz

Benefits
• Pre-qualified SolderPlus solder paste formulations save time and streamline implementation by delivering a qualified complete system
• Non-contact jet dispensing provides extremely repeatable, accurate fluid deposits at higher speeds for greater productivity
