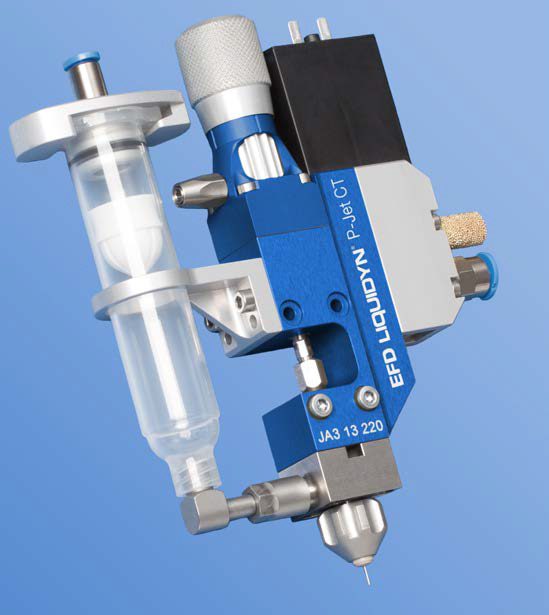

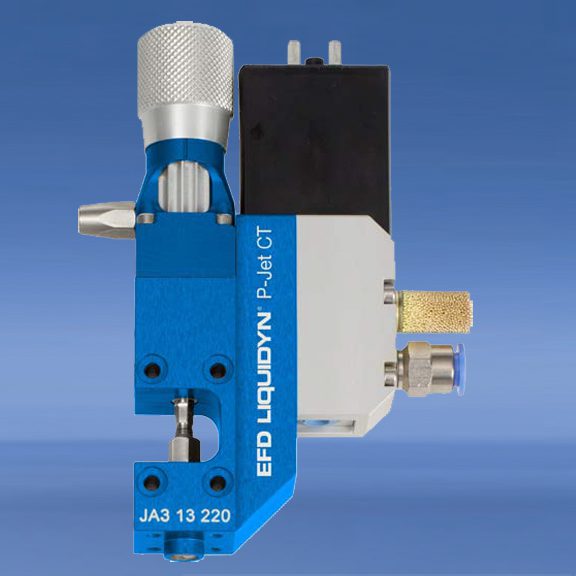

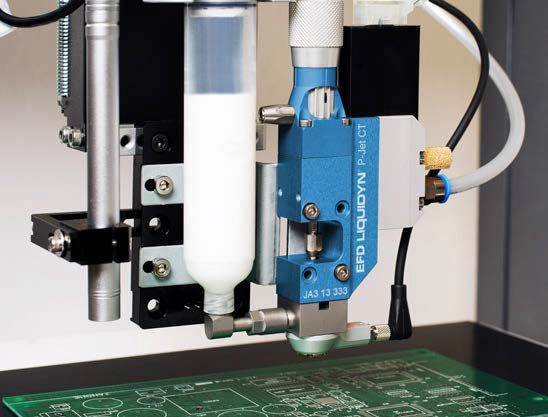

The Liquidyn P-Jet is a high-performance jet valve designed for the non-contact micro-dispensing of low-to-medium-viscosity fluids, including oils, greases, glues, flux and filled products. The Liquidyn P-Jet valve can produce micro-deposits as small as 3 nL at dispensing frequencies of up to 280Hz, for a faster production process. The valve can also dispense larger fluid volumes and is capable of both dot and line dispensing.

Features
• Suitable for low- to medium-viscosity fluids
• Dispensing volume starting at 3nL
• Dispensing frequencies as high as 280Hz
• Bead or line dispensing capability
• Low voltage operation (24 VDC)
• Modular design
• 3D dispensing

Benefits
• High repeatability and high accuracy provide very consistent dispensing results for higher productivity.
• Interchangeable components mean quick changeout of fluid types and easy service and maintenance.
• Highly abrasive mediums, in addition to low-viscosity fluids, can be dispensed.
• IP65-compliant construction makes the valve dust-proof and wash-down friendly.
