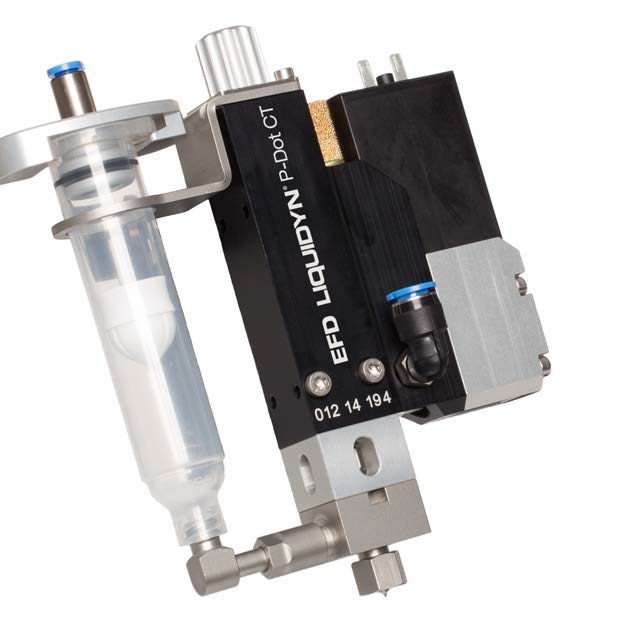

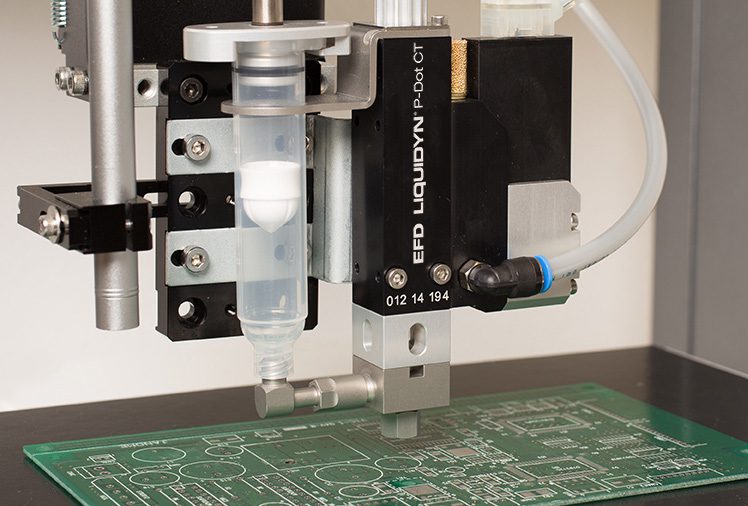

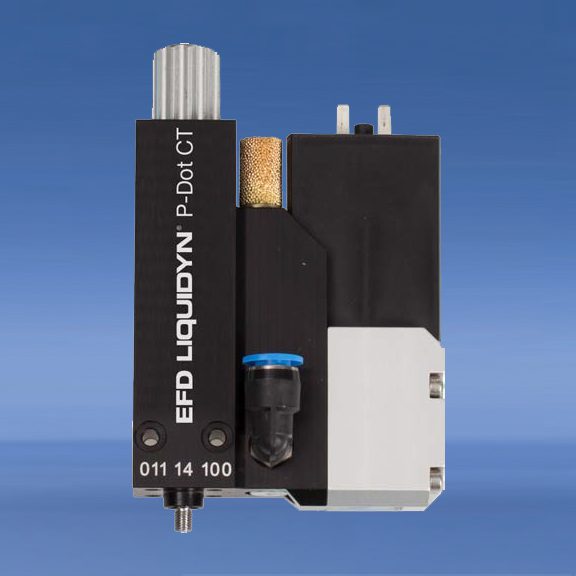

The Liquidyn P-Dot is a high-performance jet valve designed for the non-contact micro-dispensing of medium- to high-viscosity fluids, including oils, greases, adhesives, silicones, lacquers, fluxes, and medical and chemical substances. Depending on the material, the valve can dispense dot diameters ranging in size from 0.3 to 5 mm. The distance between the valve and the substrate is usually between 2 and 10 mm.

Features
• Suitable for highly viscous fluids
• Dispensing volume starting at 3 nL
• Dispensing frequencies as high as 150Hz
• Bead or line dispensing capability
• Low voltage operation (24 VDC)
• Modular design
• 3D dispensing

Benefits
• High repeatability and high accuracy provide very consistent dispensing results for higher productivity.
• Interchangeable components mean quick changeout of fluid types and easy service and maintenance.
• IP65-compliant construction makes the valve dust-proof and wash-down friendly.
